JG5015 — Mini Hydraulic Crawler Excavator 1.5T (Kubota D722)

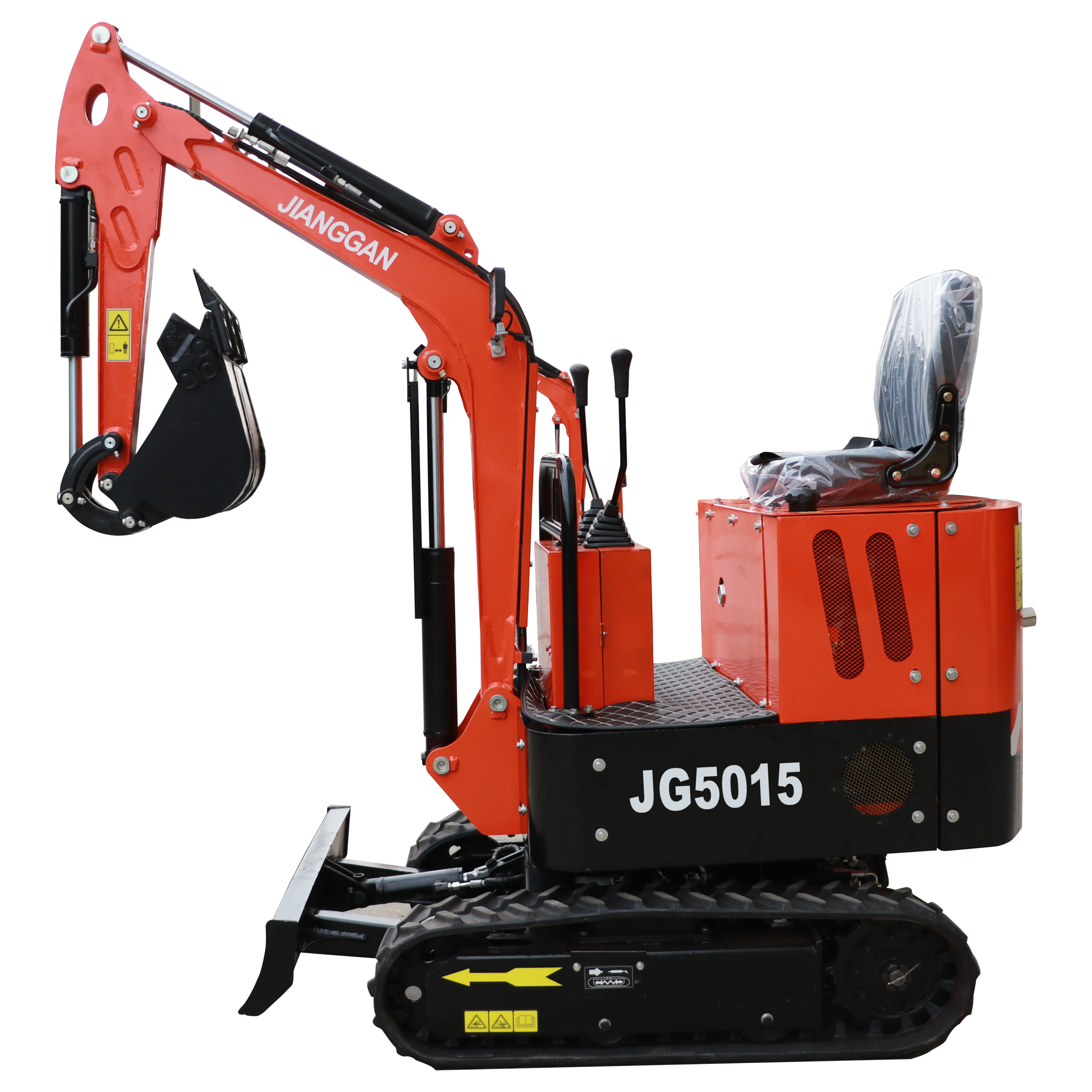

JG5015 — Mini Hydraulic Crawler Excavator 1.5T (Kubota D722)

Factory-direct from Nanchang, China | 12-Month Warranty | CE Available

The JG5015 marks the entry into JIANGGAN’s 1.5-tonne segment with the renowned Kubota D722 engine. At 1,500 kg, it offers 13 kN bucket digging force and 3,544 mm reach, while retaining the narrow 970 mm body width for orchard rows and confined worksites. Kubota’s global dealer network means parts and service are available wherever the machine goes — a significant advantage for export buyers in Southeast Asia, Africa, and the Middle East.

Key Features

Kubota D722 engine: 11.8 kW — trusted across Asia for low maintenance cost
13 kN bucket digging force — handles rocky ground and hard subsoil
3,544 mm digging reach
970 mm body width — fits in orchard rows
Boom deflection L80°/R45°
Auxiliary hydraulic circuit — attachment-ready from factory
Rubber tracks
12-month warranty; Kubota D722 parts from global dealer network

Performance Parameters

Scope of Work	Value
Machine Weight	1,500 kg
Engine Model	Kubota D722
Engine Power	11.8 kW / 2,500 rpm
Hydraulic System Pressure	20 MPa
Swing Speed	12 rpm
Travel Speed	0~2.5 km/h
Bucket Digging Force	13 kN
Arm Digging Force	10 kN
Climbing Ability	<35° (70%)
Ground Pressure	30 kPa
Boom Deflection Angle	L80°/R45°

Dimensions & Capacity	Value
Max Digging Reach	3,544 mm
Max Digging Depth	2,080 mm
Max Digging Height	3,300 mm
Max Dumping Height	2,400 mm
Swing Radius	1,650 mm
Overall Length	3,400 mm
Overall Width	970 mm
Overall Height	2,380 mm
Min. Ground Clearance	190 mm
Track Ground Length	1,170 mm
Track Width	230 mm
Bucket Capacity	0.06 m³

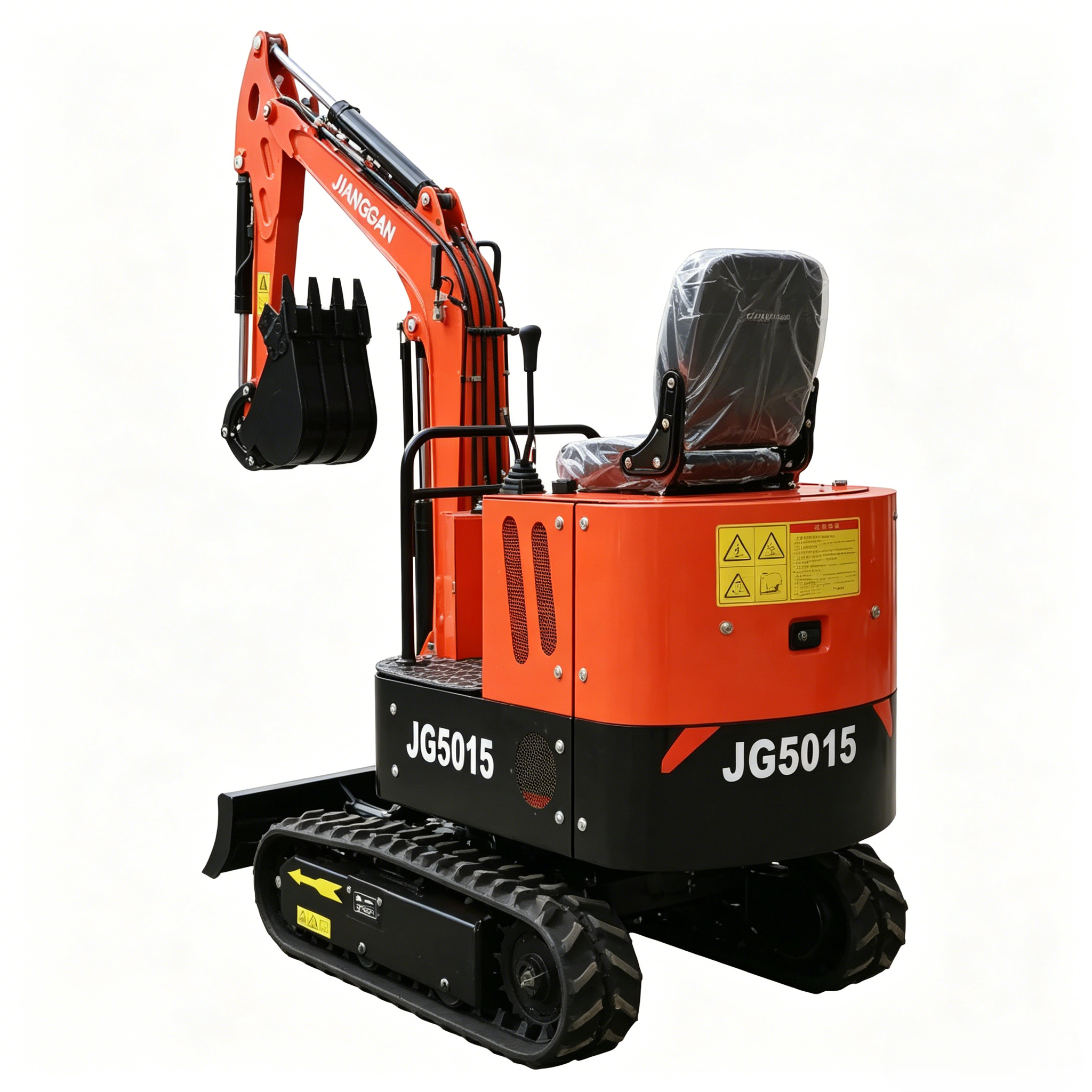

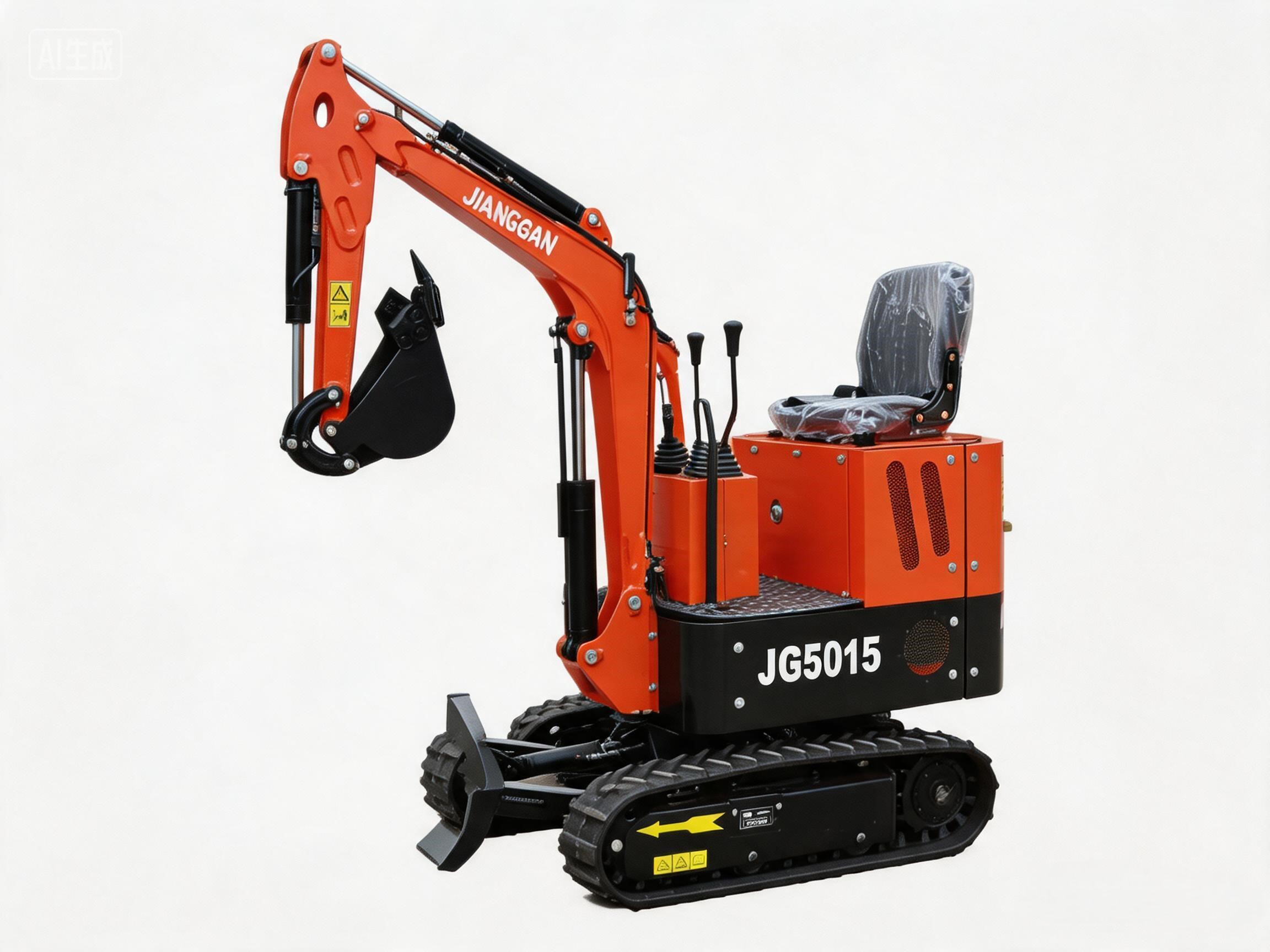

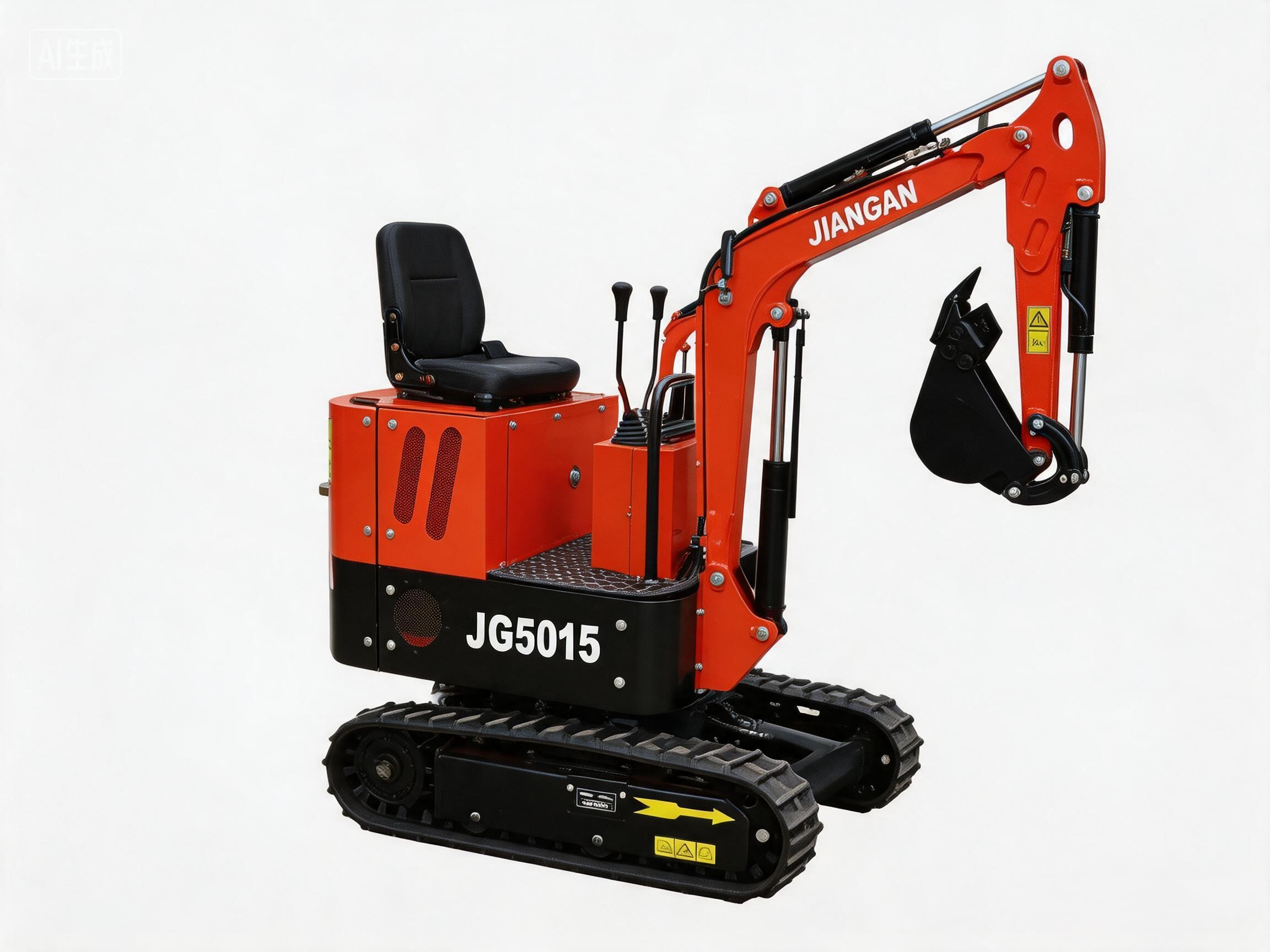

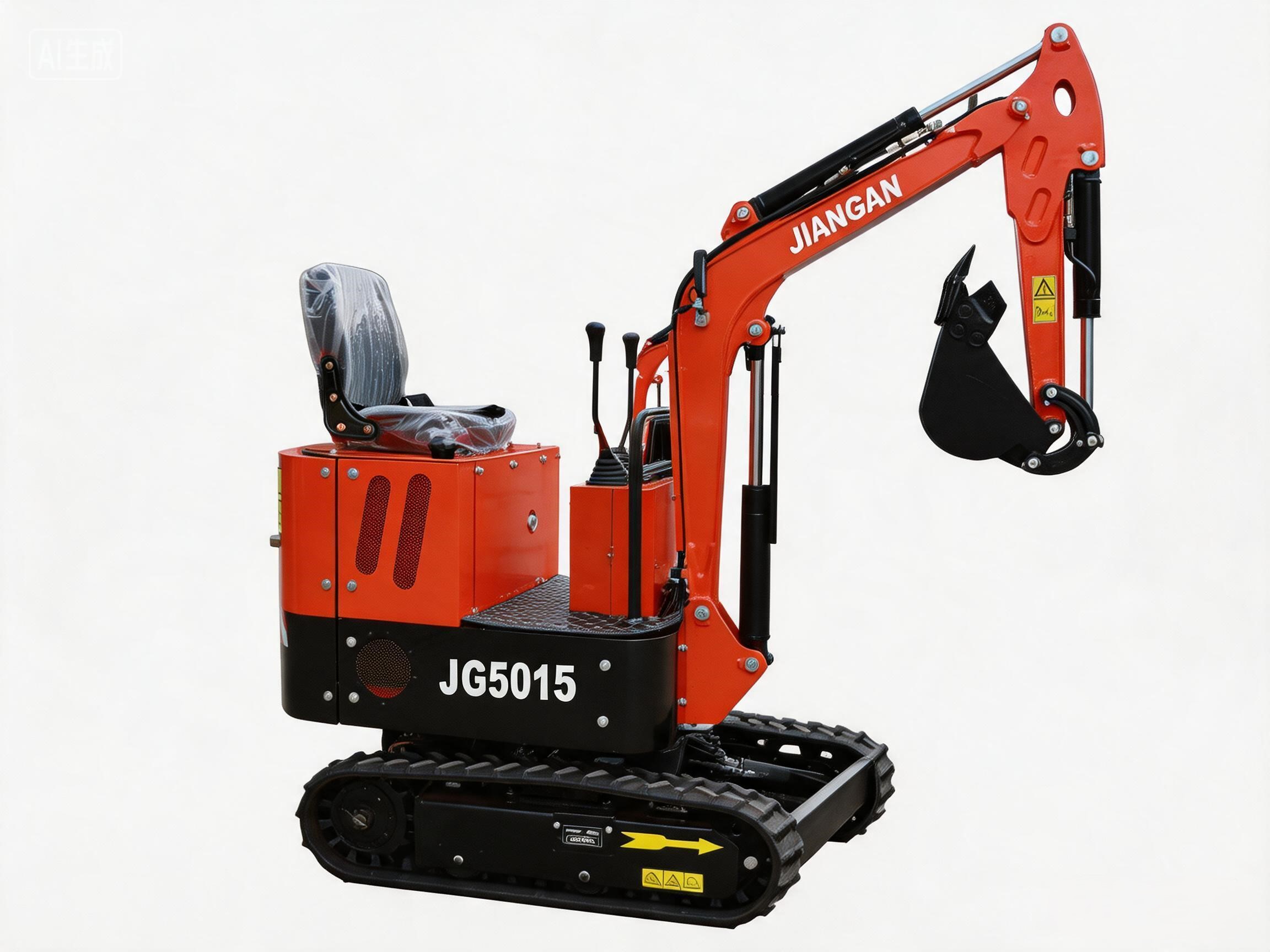

Product Gallery
