JG5023 A/B/C — Mini Hydraulic Crawler Excavator 1.8T (Yanmar)

JG5023 A/B/C — Mini Hydraulic Crawler Excavator 1.8T (Yanmar)

Factory-direct from Nanchang, China | 12-Month Warranty | CE Available

Premium Yanmar-powered 1.8T excavator. The Yanmar 3TNV80F-5N engine produces 15.2 kW and is officially serviced in over 100 countries. Available in three body variants — A (open ROPS), B (half canopy), C (full enclosed cab) — with optional retractable undercarriage (1,050–1,350 mm). CE and inspection certificates are available on request, making this the preferred choice for European and regulated-market buyers who require documented compliance.

Key Features

Yanmar 3TNV80F-5N engine: 15.2 kW — officially serviced in 100+ countries
Three cab variants: A (open ROPS), B (half canopy), C (full enclosed cab)
Optional retractable undercarriage 1,050–1,350 mm
3,793 mm digging reach and 2,154 mm depth
14 kN bucket digging force, 20 MPa hydraulic system
CE and inspection certificates available on request
12-month warranty

Performance Parameters

Scope of Work	Value
Machine Weight	1,800 kg
Engine Model	Yanmar 3TNV80F-5N
Engine Power	15.2 kW / 2,500 rpm
Hydraulic System Pressure	20 MPa
Swing Speed	10 rpm
Travel Speed	0~4.5 km/h
Bucket Digging Force	14 kN
Arm Digging Force	10 kN
Climbing Ability	<35° (70%)
Undercarriage (Optional)	1,050~1,350 mm (extendable)
Boom Deflection Angle	L80°/R45°

Dimensions & Capacity	Value
Max Digging Reach	3,793 mm
Max Digging Depth	2,154 mm
Max Digging Height	3,050 mm
Max Dumping Height	2,217 mm
Swing Radius	1,820 mm
Overall Length	3,800 mm
Overall Width	1,060 mm
Overall Height	2,300 mm
Min. Ground Clearance	235 mm
Track Ground Length	1,090 mm
Track Width	230 mm
Bucket Capacity	0.06 m³

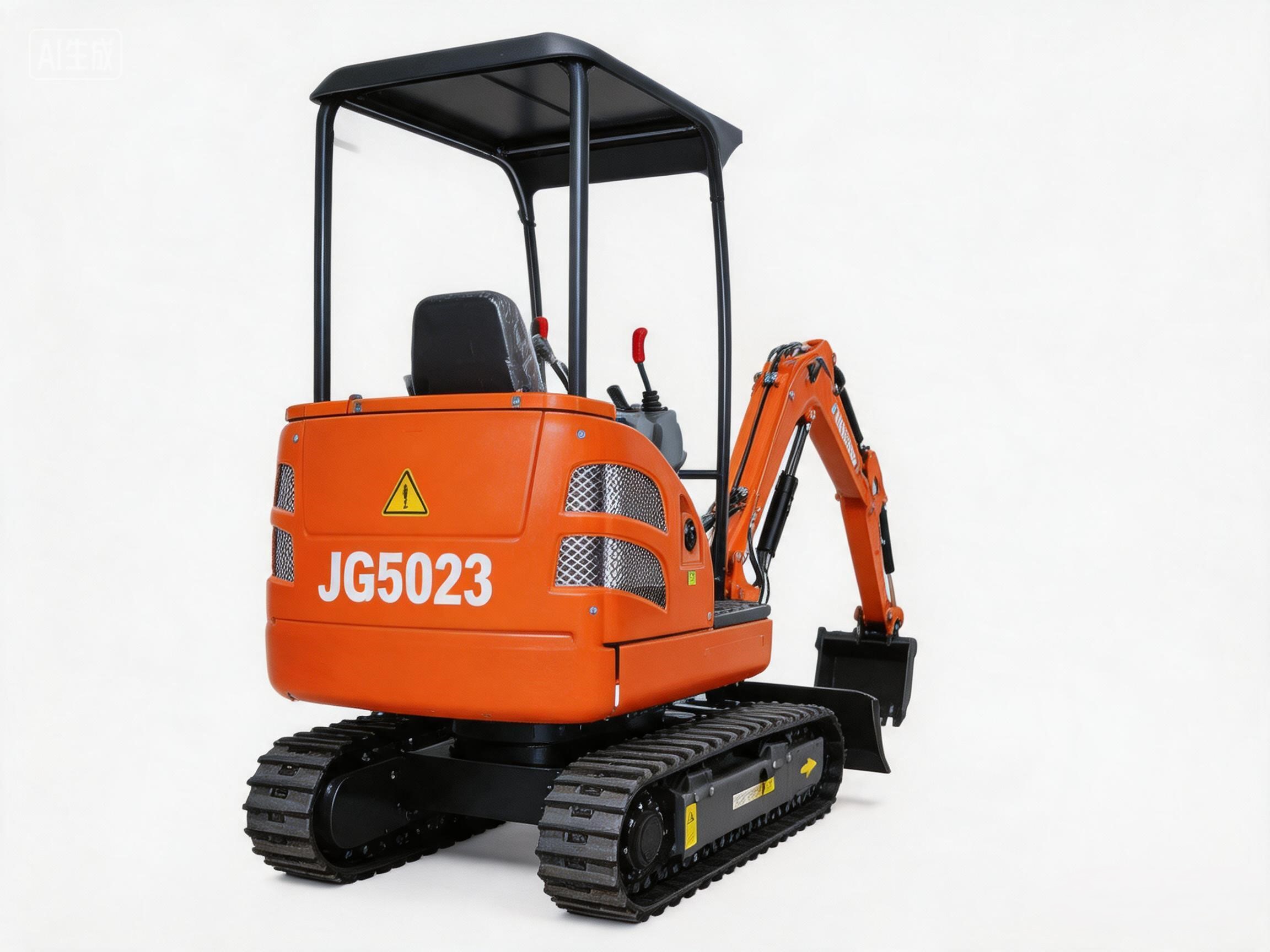

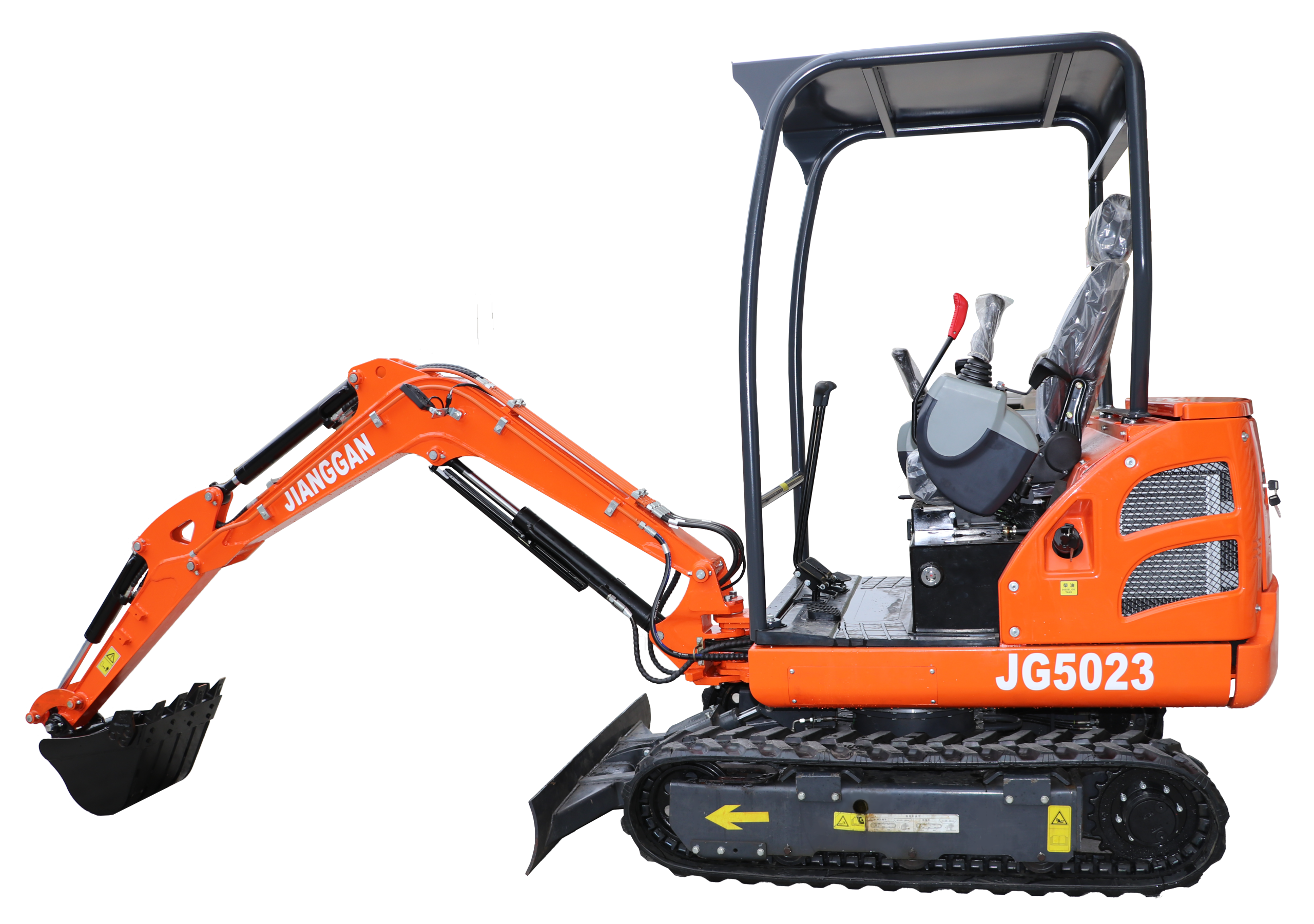

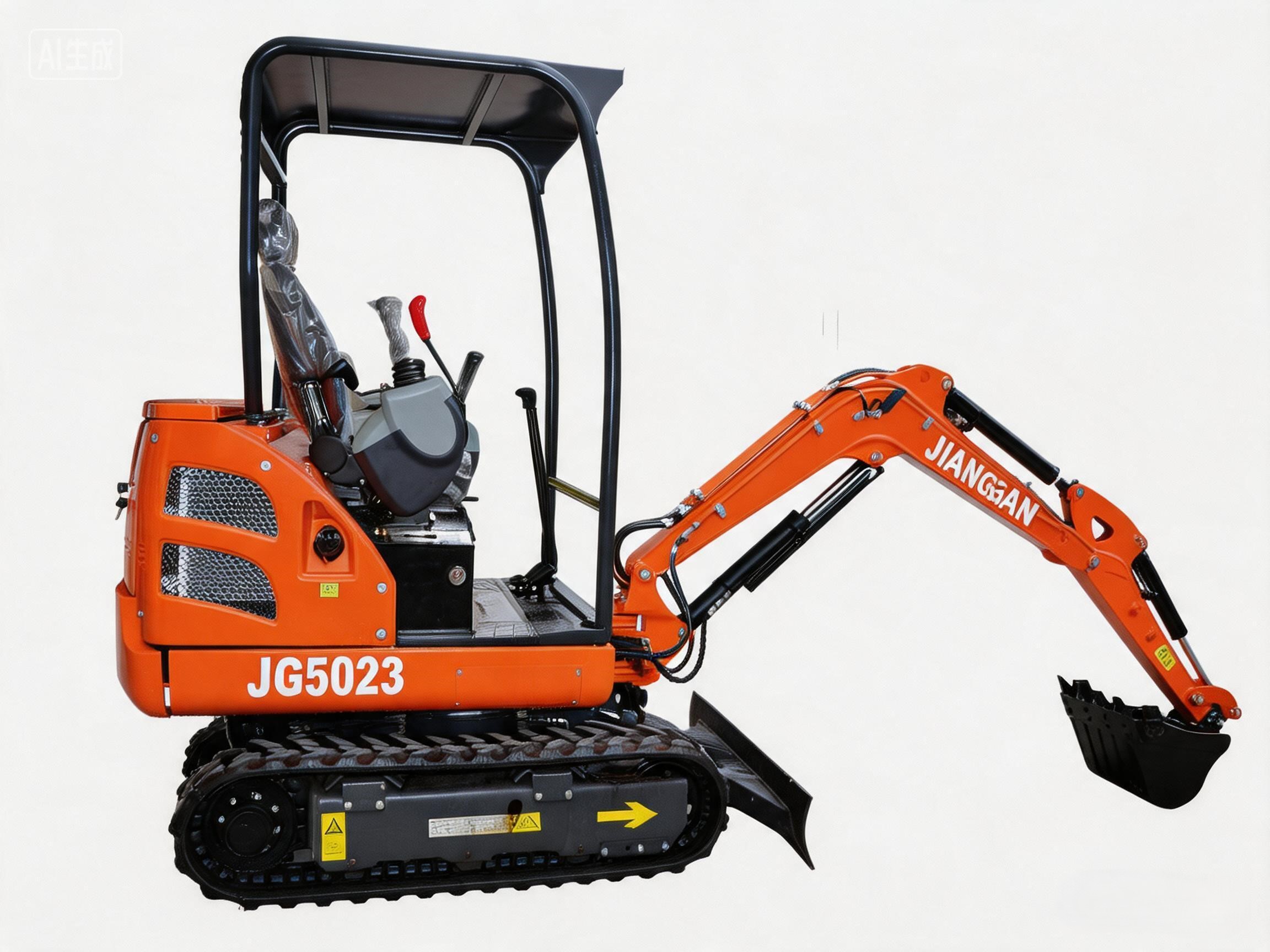

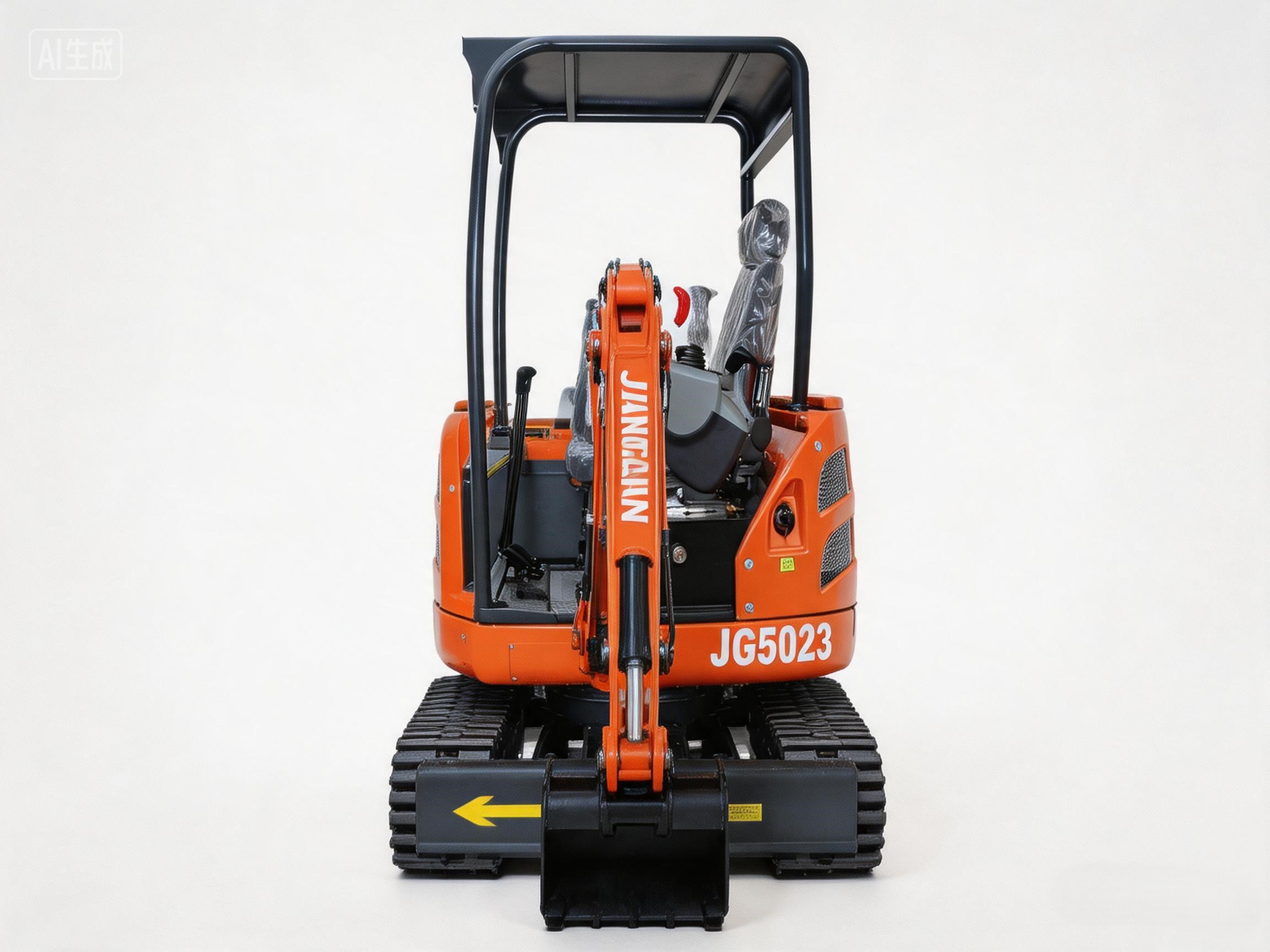

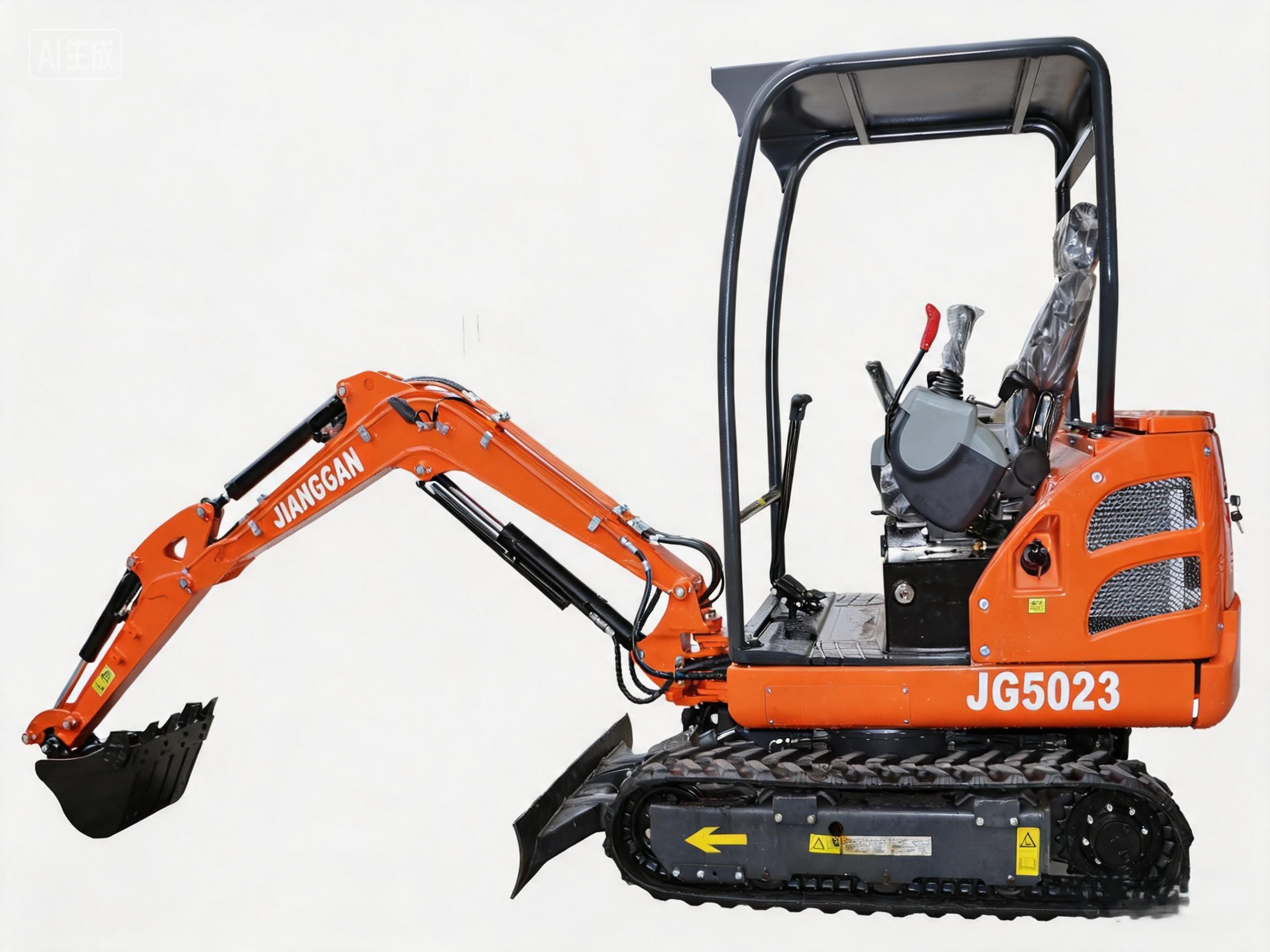

Product Gallery
