JG5021 A/B/C — Mini Hydraulic Crawler Excavator 1.8T (Laidong)

JG5021 A/B/C — Mini Hydraulic Crawler Excavator 1.8T (Laidong)

Factory-direct from Nanchang, China | 12-Month Warranty | CE Available

JIANGGAN’s most versatile 1.8-tonne excavator. Available in three body configurations — A (open ROPS), B (half canopy), C (full enclosed cab) — with optional extendable undercarriage (1,050–1,350 mm). Powered by the Laidong 3TE25-G36 at 18.4 kW, the highest output in the JIANGGAN mini series. The three cab variants allow buyers to match the machine precisely to their climate and operating conditions, from tropical plantations (open ROPS) to cold-climate municipal work (enclosed cab with heater).

Key Features

Three cab variants: A (open ROPS), B (half canopy), C (full enclosed cab)
Optional extendable undercarriage 1,050–1,350 mm
Laidong 3TE25-G36 engine: 18.4 kW — highest power in the mini series
3,793 mm digging reach and 2,154 mm depth
14 kN bucket digging force
20 MPa hydraulic system
Attachment-ready hydraulic circuit
12-month warranty

Performance Parameters

Scope of Work	Value
Machine Weight	1,800 kg
Engine Model	Laidong 3TE25-G36
Engine Power	18.4 kW / 2,350 rpm
Hydraulic System Pressure	20 MPa
Swing Speed	10 rpm
Travel Speed	0~4.5 km/h
Bucket Digging Force	14 kN
Arm Digging Force	10 kN
Climbing Ability	<35° (70%)
Undercarriage (Optional)	1,050~1,350 mm (extendable)
Boom Deflection Angle	L80°/R45°

Dimensions & Capacity	Value
Max Digging Reach	3,793 mm
Max Digging Depth	2,154 mm
Max Digging Height	3,050 mm
Max Dumping Height	2,217 mm
Swing Radius	1,820 mm
Overall Length	3,800 mm
Overall Width	1,060 mm
Overall Height	2,300 mm
Min. Ground Clearance	235 mm
Track Ground Length	1,090 mm
Track Width	230 mm
Bucket Capacity	0.06 m³

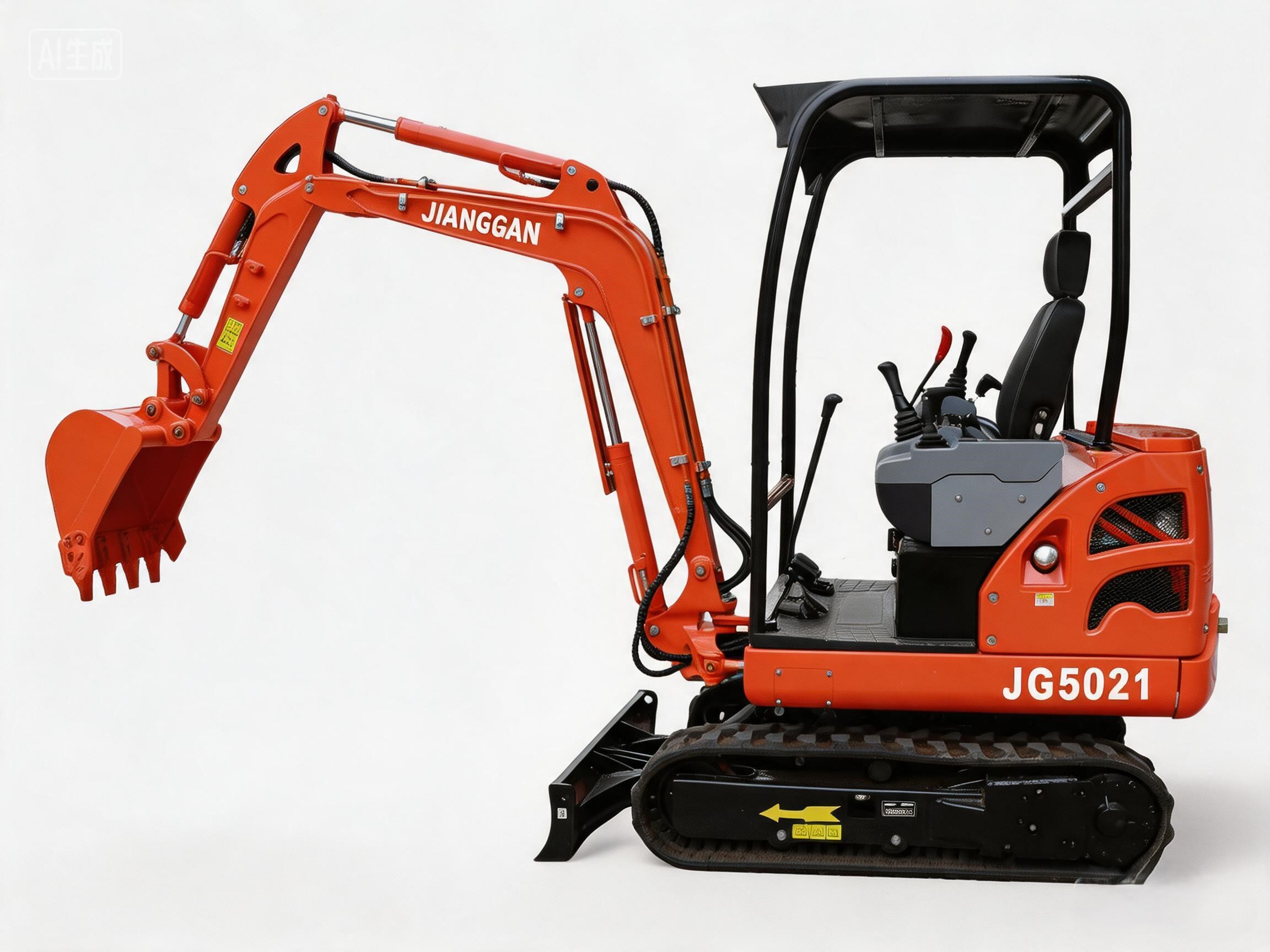

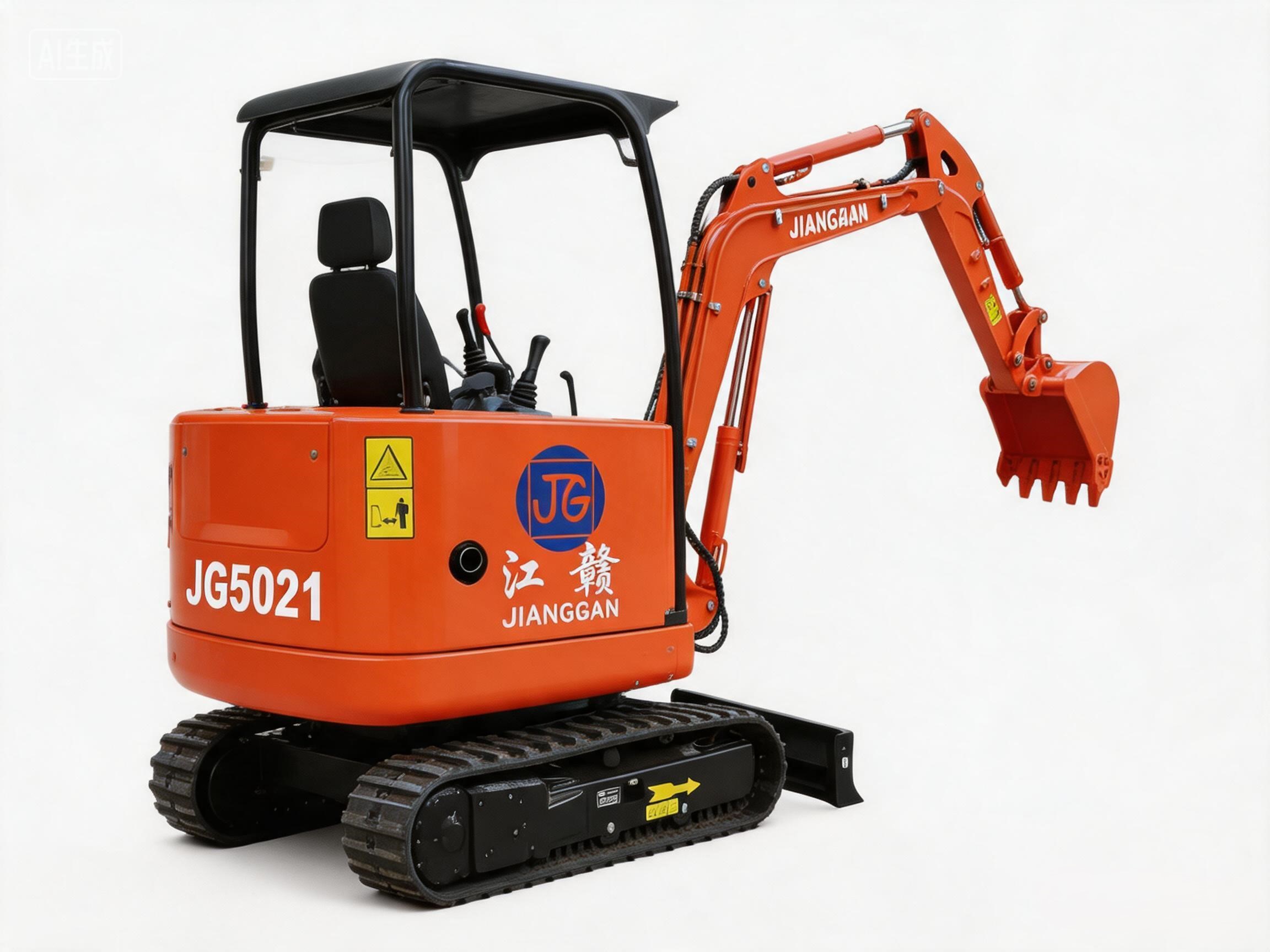

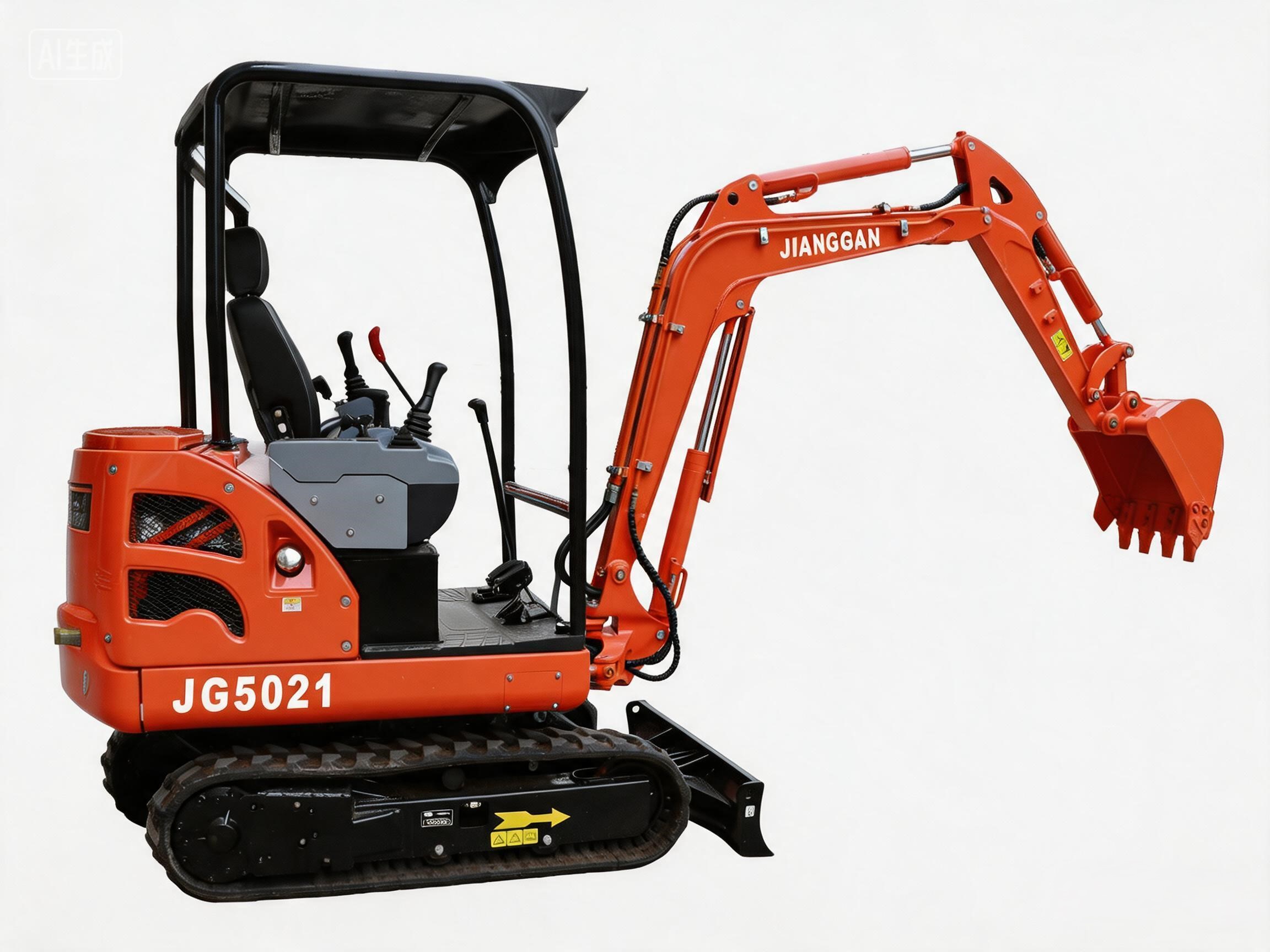

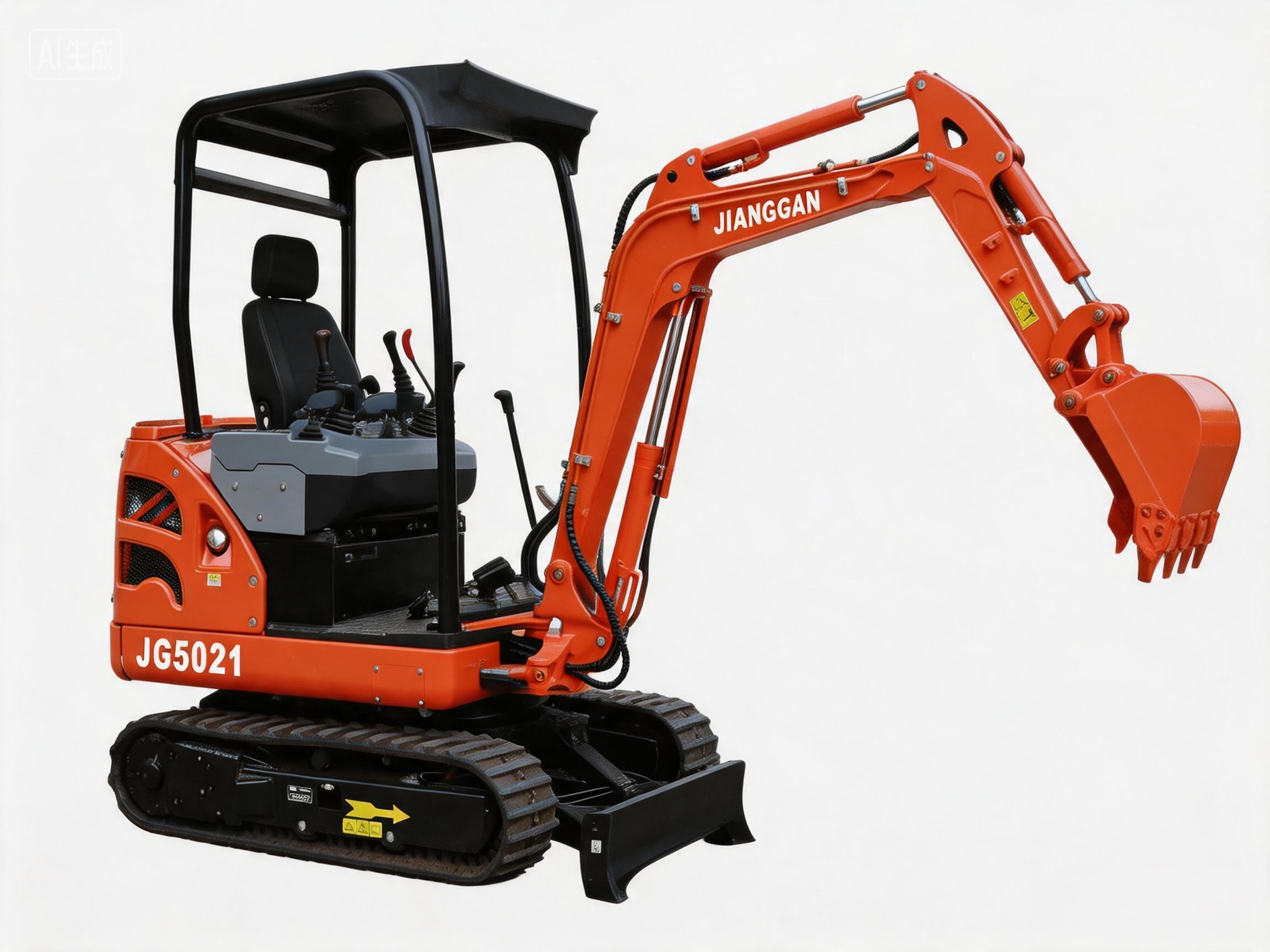

Product Gallery
