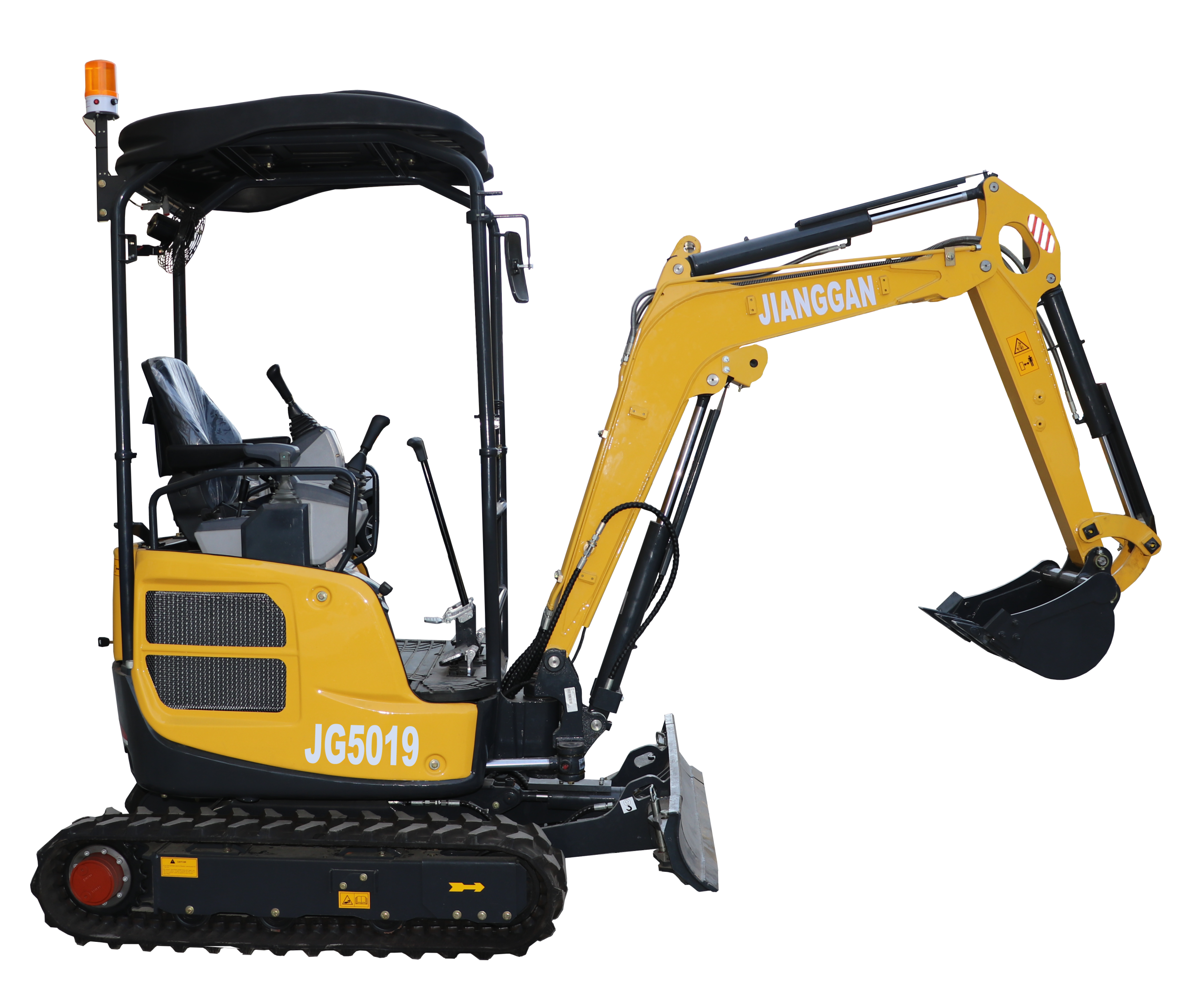

JG5019R — Mini Hydraulic Crawler Excavator 1.7T (Yanmar 3TNV74)

JG5019R — Mini Hydraulic Crawler Excavator 1.7T (Yanmar 3TNV74)

Factory-direct from Nanchang, China | 12-Month Warranty | CE Available

Same proven 1.7T platform as the JG5017R, powered by the Yanmar 3TNV74 engine. This Tier-4 compliant power unit is officially serviced in over 100 countries across Europe, the Middle East, and Southeast Asia. Buyers who prefer the Yanmar ecosystem or need Tier-4 compliance for regulated markets should choose this model. Kubota 902 is available as an alternative engine option on request.

Key Features

Yanmar 3TNV74 engine — Tier 4 compliant, global service network
Kubota 902 available as alternative engine option on request
Extendable undercarriage 970–1,260 mm
3,700 mm digging reach with 2,080 mm depth
14 kN bucket digging force
20 MPa hydraulic system
Full canopy + warning beacon standard
12-month warranty

Performance Parameters

Scope of Work	Value
Machine Weight	1,700 kg
Engine Model	Yanmar 3TNV74 (Kubota 902 optional)
Engine Power	11.3 kW / 2,200 rpm
Hydraulic System Pressure	20 MPa
Swing Speed	10 rpm
Travel Speed	0~4.5 km/h
Bucket Digging Force	14 kN
Arm Digging Force	10 kN
Climbing Ability	<35° (70%)
Undercarriage Width	970~1,260 mm (extendable)
Boom Deflection Angle	L80°/R45°

Dimensions & Capacity	Value
Max Digging Reach	3,700 mm
Max Digging Depth	2,080 mm
Max Digging Height	3,300 mm
Max Dumping Height	2,400 mm
Swing Radius	1,730 mm
Overall Length	3,500 mm
Overall Width	970 mm
Overall Height	2,430 mm
Min. Ground Clearance	190 mm
Track Ground Length	1,170 mm
Track Width	230 mm
Bucket Capacity	0.06 m³

Product Gallery

Ready to Order the JG5019?

Send your requirements via WhatsApp for same-day FOB price quote.
